110x110mm table size,table model,high speed marking on metal. 50W fiber raycus laser power supply,EZCAD software.
Model | OWF-50T |
Laser power | Fiber 50W raycus |
Working area | 110*110mm |
Laser Wavelength | 1064nm |
Response time | 0.5m/s |
Frequency of pulse | 20-100KHz |
Max marking depth | ≤0.4mm |
Marking speed | ≤7000mm/s |
Marking lines | 1-10 lines(in the marking area) |
Minimum line width | 0.1mm |
Minimum character | 0.15mm |
Repeatability accuracy | ±0.002mm |
Resolution ratio | 0.1mm |
Marking content | Text,pattern,date,bar code,etc |
Operation system | Microsoft Windows XP |
Control software | EZCAD |
Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
Unit power | ≤1.2KW |
Operation temperature | 5℃-40℃ |
Relative moisture | ≤ 90%,no fog |
Supply Voltage | 220V/50Hz/10A |
- Famous brand
- High speed marking and efficiency
- Fine marking
- High positioning accuracy
- Convenient to operate
- Durable using
- Raycus 50W fiber laser
- Long life no maintenance

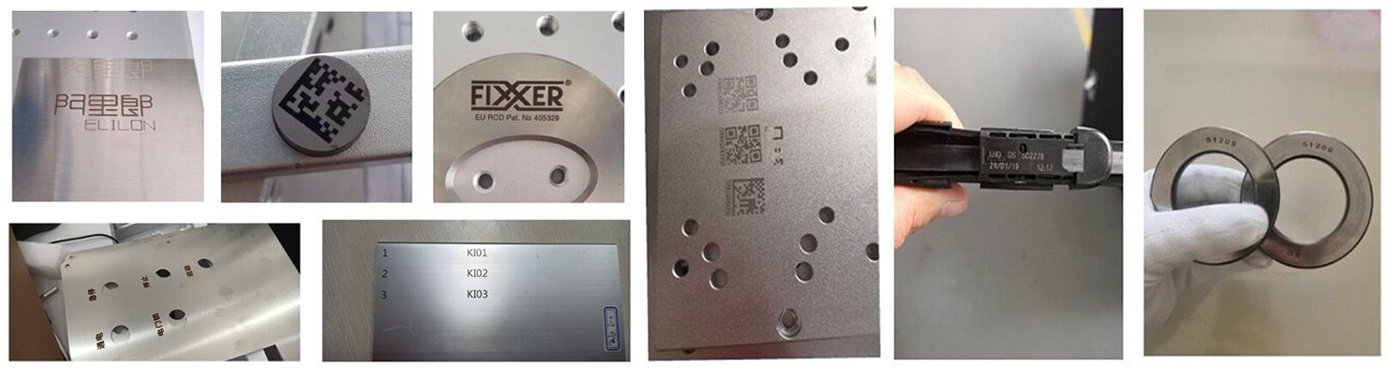

- Marking on metal and some nonmetal
Jinan owin cnc equipment Co.,LTD is located in Jinan city,Shandong province. Our factory coves 6,000 square meters and own more than 100 employees including research and develop department,design department,production department,sales department,after sale service department,quality inspection department and finance department.
Owin factory is divided into 4 area,which are economic model fiber laser machines area,high power custom fiber laser cutting machines area, finished machines area and show room.
Owin laser is gradually improving according to the request and feedback from the customers.Products are more and more humanization and optimization. Hundreds of laser machine equipment are manufactured every month.Owin laser provides customers with timely and professional product analysis, design and maintenance work. Sincerely to cooperate with all of you.
