OWF-3015E High Power Dual Platform Fiber Laser Cutting Machine

1 Dual exchange platform full cover        2  Standard model 3000W fiber laser source        3 Raycus or IPG or Max fiber laser source

OWF-3015E Cutting video

Fiber laser machine with double exchange tables,high working efficiency,one table working,putting material on another table to be ready to cut,much save time and labor.

Product Parameter

Equipment model

OWF3015E

Laser type

Fiber laser

Laser working media

Fiber

Laser wavelength

1070nm

Rated output power

3000W

Beam quality

<0.373mrad

Effective cutting range

3000*1500mm

Workbench axial positioning accuracy

≤±0.02mm/m

Workbench Repositioning Accuracy

≤±0.01mm/m

Cutting Speed

≤30m/min (Depends on material)

 Workbench maximum load

2000KG

Rated parameters of power supply

3 Phase AC 380V 50Hz

Equipment electric power

10-30KW

Total power protection class

IP54

Electric oil pot

Timely quantitative automatic filling

Empty line speed

100m/min

Single positioned accuracy

<0.03mm

weight

6000KG

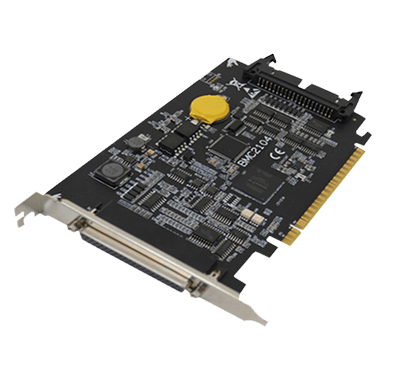

Cypcut Controller

FSCUT2000S medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabricaton industry, with features of easy to install and adjust, excellent performance and fully integrated solutions, it is the upgrade version from FSCUT2000C.

Japan Yaskawa Servo Motor And Driver
  • Famous and best brand
  • Running fast
  • Stable performance
  • High sensitivity
  • Suitable high power
JAPAN FRANCE MOTOREDUCER
  • Big torque
  • Low noise
  • Large scale transmission ratio
  • Stable performance
RAYCUS LASER SOURCE
  • It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.

TAIWAN YYC RACK
  • Strong rigidity
  • Hard-wearing performance
  • Long life
MACHINE STRUCTURE
  • Milling by 5 axis machine to make sure high precision
  • Handled by high temperature tempering
  • No deformation after using three years
Sample
Company Strength

Jinan owin cnc equipment Co.,LTD is located in Jinan city,Shandong province. Our factory coves 6,000 square meters and own more than 100 employees including research and develop department,design department,production department,sales department,after sale service department,quality inspection department and finance department.

Owin factory is divided into 4 area,which are economic model fiber laser machines area,high power custom fiber laser cutting machines area, finished machines area and show room.



Owin laser is gradually improving according to the request and feedback from the customers.Products are more and more humanization and optimization. Hundreds of laser machine equipment are manufactured every month.Owin laser provides customers with timely and professional product analysis, design and maintenance work. Sincerely to cooperate with all of you.
