OWF-3015S Economic model fiber laser cutting machine
1 1000W fiber laser source        2  Inner control cabinet        3 Hot sale products
OWF-3015S Cutting video
1000W fiber laser source for cutting thin metal,manual optional auto focus laser head. Cypcut controller and Japan servo motor. competitive price model hot sale in owin laser.
Product Parameter

Equipment model

OWF3015S

Laser type

Fiber laser

Laser working media

Fiber

Laser wavelength

1070nm

Rated output power

1000W

Beam quality

<0.373mrad

Effective cutting range

3000*1500mm

Workbench axial positioning accuracy

≤±0.02mm/m

Workbench Repositioning Accuracy

≤±0.01mm/m

Cutting Speed

≤30m/min (Depends on material)

 Workbench maximum load

1000KG

Rated parameters of power supply

3 Phase AC 380V 50Hz

Equipment electric power

10-30KW

Total power protection class

IP54

Electric oil pot

Timely quantitative automatic filling

Empty line speed

100m/min

Single positioned accuracy

<0.03mm

weight

3500KG

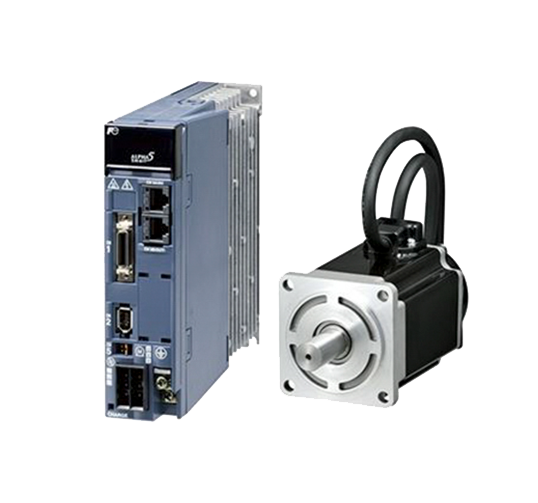

JAPAN FUJI SERVO MOTOR AND DRIVER
  • Famous brand
  • Running fast
  • Stable performance
  • High sensitivity
JAPAN SHIMPO REDUCER
  • High precision and speed
  • Big torque
  • Low noise
  • Large scale transmission ratio
  • Stable performance
RAYCUS LASER SOURCE
The new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section.
TAIWAN YYC RACK
  • Strong rigidity
  • Hard-wearing performance
  • Long life
MACHINE STRUCTURE
  • Milling by 5 axis machine to make sure high precision
  • Handled by high temperature tempering
  • No deformation after using three years

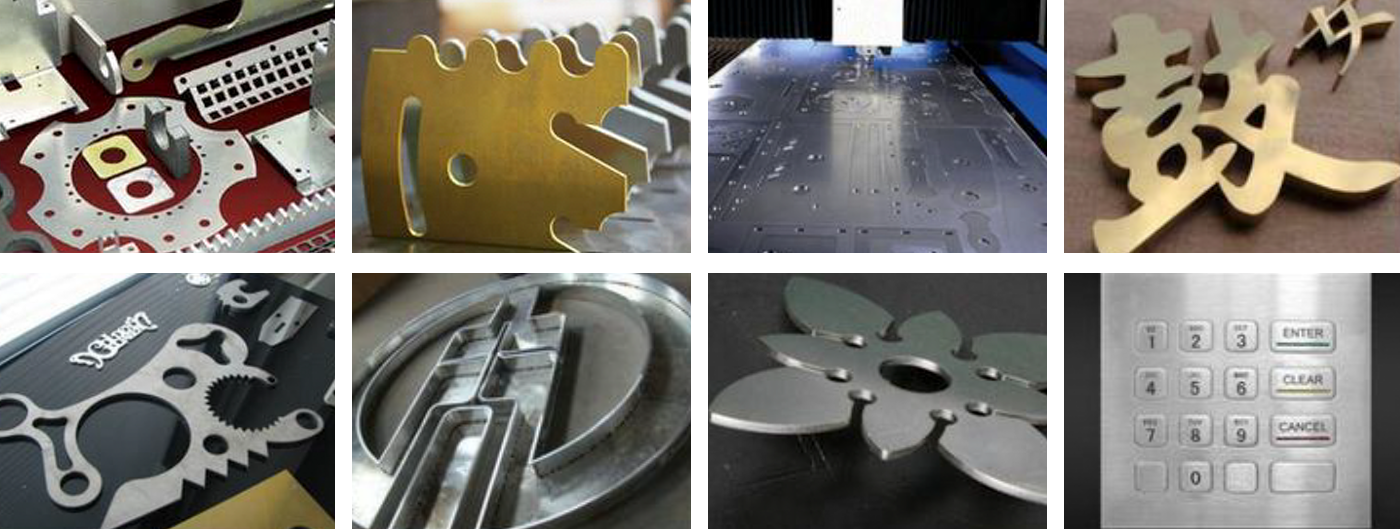

Sample
Company Strength

Jinan owin cnc equipment Co.,LTD is located in Jinan city,Shandong province. Our factory coves 6,000 square meters and own more than 100 employees including research and develop department,design department,production department,sales department,after sale service department,quality inspection department and finance department.

Owin factory is divided into 4 area,which are economic model fiber laser machines area,high power custom fiber laser cutting machines area, finished machines area and show room.



Owin laser is gradually improving according to the request and feedback from the customers.Products are more and more humanization and optimization. Hundreds of laser machine equipment are manufactured every month.Owin laser provides customers with timely and professional product analysis, design and maintenance work. Sincerely to cooperate with all of you.
